Silvercrest Lichterkette

Config:

1262551497.loxone

Template:

1262551327.xml

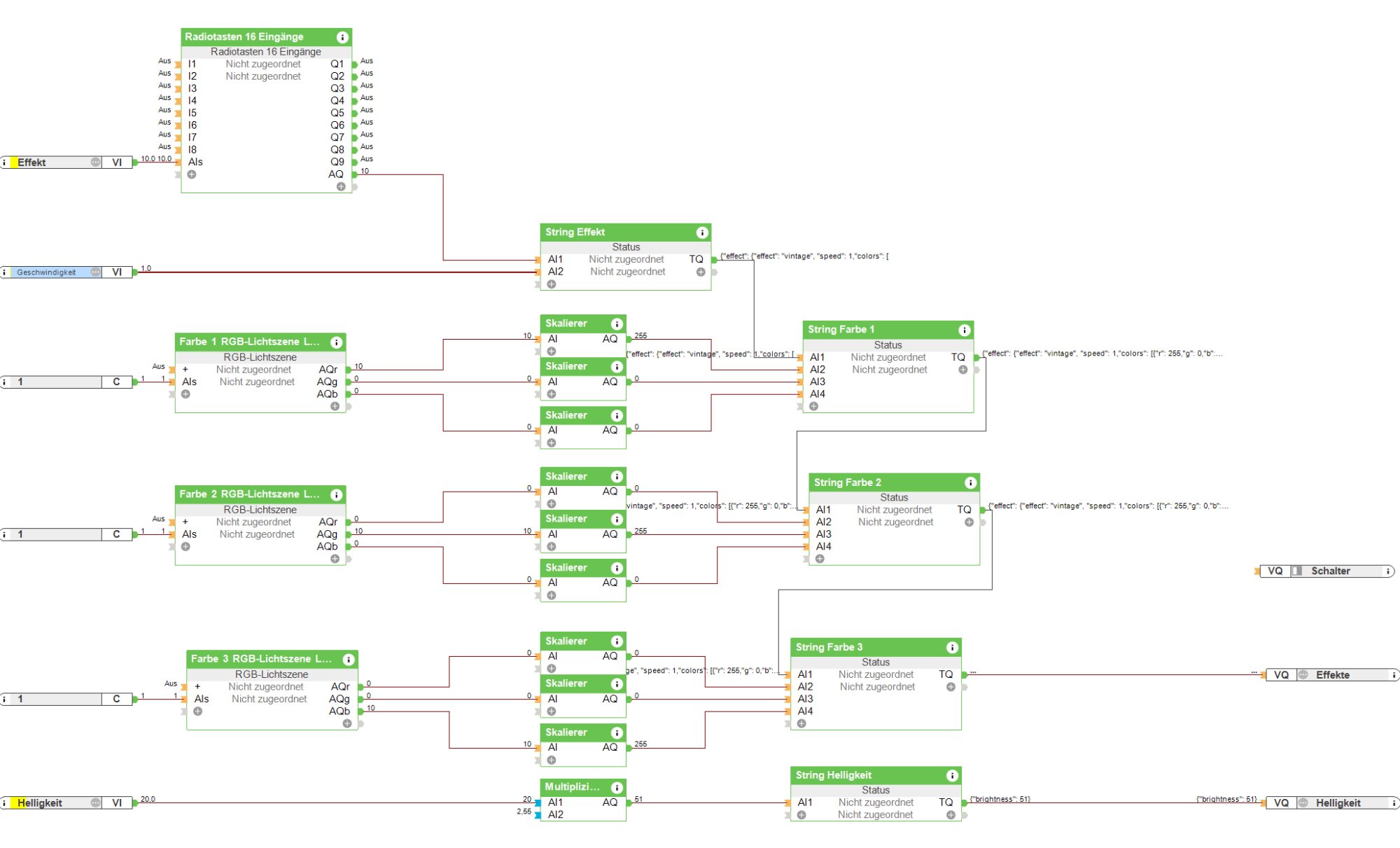

Konstante 1 bei der RGB Lichtszene ist nur für die Darstellung der Simulation

Doku: Lichterkette

Controls the 16 build-in effects of the LED string. An effect expects 3 parameters: speed, colors and effect. To trigger an effect send a message to zigbee2mqtt/FRIENDLY_NAME/set with payload {"effect": {"effect": EFFECT, "speed": SPEED, "colors": COLORS}}. Description:

• SPEED should be a number between 1 and 100.

• COLORS is an array of JSON objects containing r, g, b. Note: some effects support multiple colors

• EFFECT is a string, below is a list of possible values and the amount of colors it supports

  |     effect             |     # colors    |
  |------------------------|-----------------|
  |     steady             |     1           |
  |     snow               |     1           |
  |     rainbow            |     0           |
  |     snake              |     6           |
  |     twinkle            |     2           |
  |     firework           |     2           |
  |     horizontal_flag    |     3           |
  |     waves              |     3           |
  |     updown             |     2           |
  |     vintage            |     1           |
  |     fading             |     1           |
  |     collide            |     1           |
  |     strobe             |     5           |
  |     sparkles           |     3           |
  |     carnaval           |     6           |
  |     glow               |     6           |

{
 "effect": {
     "effect": "snake",
     "speed": 100,
     "colors": [
         {
             "r": 255,
             "g": 0,
             "b": 0
         },
         {
             "r": 0,
             "g": 255,
             "b": 0
         },
         {
             "r": 0,
             "g": 0,
             "b": 255
         }
     ]
 }
}
